AcousticGyps Basic 120
Product Description

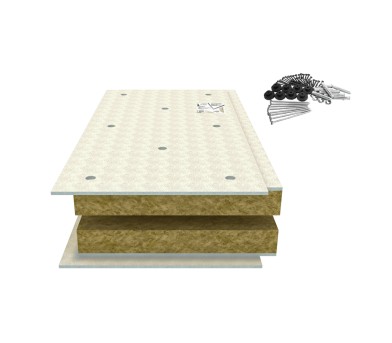

AcousticGyps Basic 120 is a sandwich panel consisting of a 20 mm gypsum fiberboard and a soft, sound-absorbing layer of high-density acoustic mineral fiber (100 mm). It provides additional soundproofing for walls, increasing sound insulation values to regulatory standards.

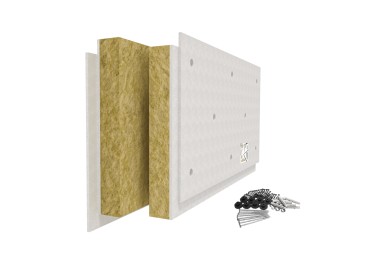

Mounting kit is supplied with the panel.
Composition
- gypsum-fiber sheet
- high-density acoustic mineral fiber
| AcousticGyps Basic 40 | AcousticGyps Basic 70 | AcousticGyps Basic 120 | |
|---|---|---|---|
Length, mm* | 1200 | 1200 | 1200 |
Width, mm* | 600 | 600 | 600 |
Thickness, mm* | 40 | 70 | 120 |
Panel Area, m2 | 0.72 | 0.72 | 0.72 |
* sizing w/o 50 mm rebated edge
| AcousticGyps Basic 40 | AcousticGyps Basic 70 | AcousticGyps Basic 120 | |
|---|---|---|---|
Improvement of airborne sound reduction index (in Slim A system) ΔRw, dB | 14/15 | 18/19 | 21/23 |
Surface density, kg/m2 | 26.3 | 27.08 | 33 |
Fire hazard class | KM1 (G1, B1, T1, D1) | KM1 (G1, B1, T1, D1) | KM1 (G1, B1, T1, D1) |
Storage period* | 24 months | 24 months | 24 months |
* subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
| AcousticGyps Basic 40 | AcousticGyps Basic 70 | AcousticGyps Basic 120 | |
|---|---|---|---|
Packing type | pallet | pallet | pallet |
Number of Panels per Pallet, pcs. | 30 | 15 | 8 |
Area on Pallet, m2 | 21.6 | 10.8 | 5.76 |
Pallet Weight, kg | 475 | 292.5 | 192 |
Number of Pallets in Euro Trailer, pcs. | 30 | 30 | 28 |
Number of Panels in Euro Trailer, pcs. | 900 | 450 | 224 |
Area in Euro Trailer, m2 | 648 | 324 | 161.3 |
The products shall be stored horizontally on pallets. Placement of pallets on one another is not allowed.
The products can be shipped in cardboard boxes or individually. Before installation, the panels shall undergo mandatory acclimatization for 1-2 days.
The products shall be stored away from sources of heat and UV radiation in a dry place at max. 35°C.
When loading and unloading, protect the material from impacts.
